Site data

i ：Shionogi Pharmaceutical Research Center

ii : Shionogi CMC Research Innovation Center

iii : Aburahi Research Center

iv : Settsu Plant

v : Kanegasaki Plant

vi : Tokushima Plant

ⅶ : UMN Pharma Inc.  Akita Plant

ⅷ : UMN Pharma Inc.  Yokohama Research Center

ⅸ : Itami Plant

x : C&O Pharmaceutical Technology (Holdings) Ltd. Nanjing Plant

ⅰ：Shionogi Pharmaceutical Research Center

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh 28,594 28,450 28,599 27,529 28,053
Gasoline kL 0 0 0 0 0
Kerosene kL 0 0 0 0 0
Light oil kL 0 0 0 0 0
Heavy oil A kL 1 2 1 2 1
Liquefied petroleum gas (LPG) tons 0 0 0 0 0
Liquefied natural gas (LNG) tons 0 0 0 0 0
Town gas thousand Nｍ3 2,551 2,402 2,366 2,167 2,313
Water thousand ｍ3 164 135 131 121 119

Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 19,691 17,162 14,975 13,720 15,149
Waste generated (excluding valuable resources) tons 488 427 390 374 405
Waste put to landfill tons 15 13 12 6 7
Drainage (sewers) thousand ｍ3 164 135 131 121 119
Drainage (public waters) thousand ｍ3  0 0 0 0 0
NOX tons 2 2 2 2 2
SOX tons － － － － －
BOD tons 2 2 2 1 2
COD tons － － － － －

Substances subject to the PRTR Act (kg)

Substance name Amount used Amount released Amount transferred
Atmosphere Public waters Soil Outside operating sites Sewers
N,N-Dimethylformamide 1,740 0 0 0 1,740 0
Acetonitrile 8,033 360 0 0 7,673 0
Chloroform 8,968 374 0 0 8,594 0
n-Hexane 5,918 521 0 0 5,397 0

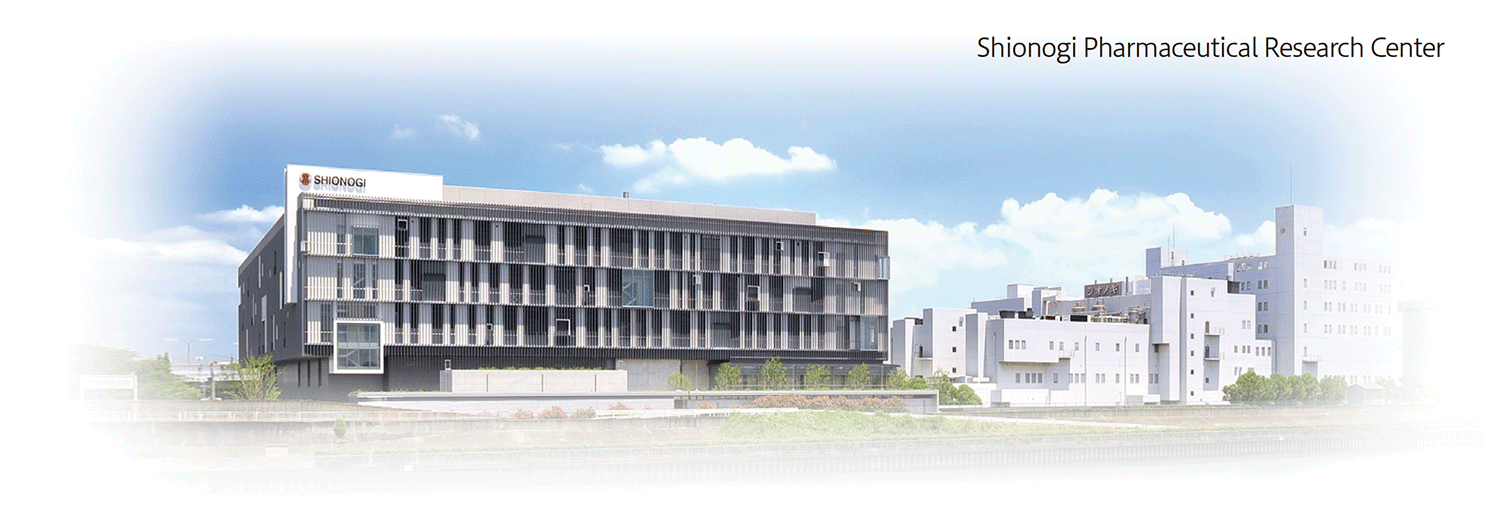

Picture of Shionogi Pharmaceuticl Research Center

ⅱ：Shionogi CMC Research Innovation Center

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh 10,077 10,161 9,694 10,141 10,201
Gasoline kL 0 0 0 0 0
Kerosene kL 0 0 0 0 0
Light oil kL 0 0 0 0 0
Heavy oil A kL 0 0 0 0 0
Liquefied petroleum gas (LPG) tons 0 0 0 0 0
Liquefied natural gas (LNG) tons 0 0 0 0 0
Town gas thousand Nｍ3 1,033 980 925 979 1,008
Water thousand ｍ3 85 82 77 82 88

Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 7,232 6,396 5,357 5,466 5,890
Waste generated (excluding valuable resources) tons 207 205 159 195 238
Waste put to landfill tons 0.0 0.0 0.0 0.0 0.0
Drainage (sewers) thousand ｍ3  63 60 57 60 65
Drainage (public waters) thousand ｍ3  0 0 0 0 0
NOX tons 0 1 1 0 1
SOX tons － － － － －
BOD tons 0 0 0 0 0
COD tons － － － － －

Substances subject to the PRTR Act (kg)

Substance name Amount used Amount released Amount transferred
Atmosphere Public waters Soil Outside operating sites Sewers
N,N-Dimethylacetamide 3,574 18 0 0 3,556 0
Acetonitrile 12,340 84 0 0 12,256 0
Toluene 3,722 19 0 0 3,704 0

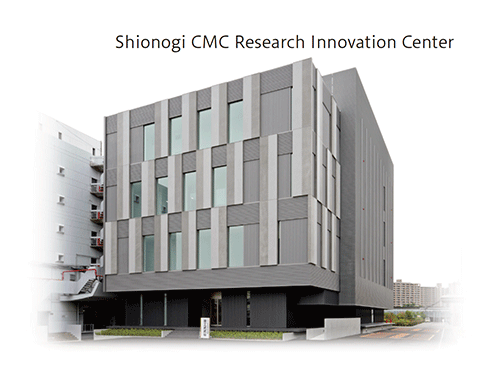

Picture of Shionogi CMC Research Innovation Center

ⅲ：Aburahi Research Center

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh 2,580 2,518 2,449 2,459 2,590
Gasoline kL 5 5 7 5 7
Kerosene kL 2 1 2 1 2
Light oil kL 0 0 0 0 0
Heavy oil A kL 0 0 1 0 0
Liquefied petroleum gas (LPG) tons 333 329 349 333 287
Liquefied natural gas (LNG) tons 0 0 0 0 0
Town gas thousand Nｍ3 0 0 0 0 0
Water thousand ｍ3 15 15 15 14 14

Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 2,287 2,055 1,886 1,797 1,792
Waste generated (excluding valuable resources) tons 48 44 48 44 48
Waste put to landfill tons 2 1 2 1 1
Drainage (sewers) thousand ｍ3  0 0 0 0 0
Drainage (public waters) thousand ｍ3  13 12 11 11 10
NOX tons 3 － － － －
SOX tons 0 － － － －
BOD tons 0 0 0 0 0
COD tons 0 0 0 0 0
　Substances to be registered under the PRTR Act: None

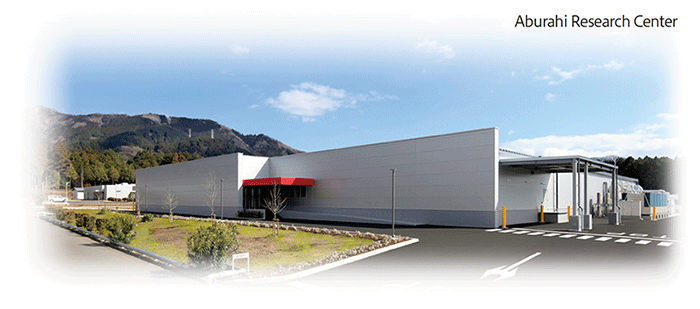

Picture of Aburahi Research Center

ⅳ：Settsu Plant

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh 17,274 14,884 15,496 15,767 16,570
Gasoline kL 1 1 2 2 2
Kerosene kL 0 0 0 0 0
Light oil kL 2 2 8 6 3
Heavy oil A kL 0 0 0 0 0
Liquefied petroleum gas (LPG) tons 0 0 0 0 0
Liquefied natural gas (LNG) tons 0 0 0 0 0
Town gas thousand Nｍ3 2,781 2,278 2,039 1,816 1,940
Water thousand ｍ3 140 140 127 116 98

Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 14,618 11,222 9,869 9,191 10,270
Waste generated　(excluding valuable resources) tons 276 266 300 282 316
Waste put to landfill tons 0.8 0.8 0.8 0.6 0.6
Drainage (sewers) thousand ｍ3  98 102 110 101 83
Drainage (public waters) thousand ｍ3  0 0 0 0 0
NOX tons 3 2 2 2 2
SOX tons － － － － －
BOD tons 1 1 1 1 1
COD tons 1 2 2 2 2

Substances subject to the PRTR Act (kg)

Substance name Amount used Amount released Amount transferred
Atmosphere Public waters Soil Outside operating sites Sewers
Acetonitrile 2,590 0 0 0 2,590 0

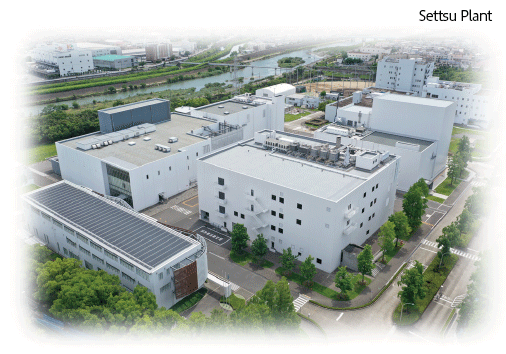

Picture of Settsu Plant

ⅴ：Kanegasaki Plant

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh 13,835 13,745 16,672 14,995 15,814
Gasoline kL 4 4 3 4 5
Kerosene kL 0 0 0 0 0
Light oil kL 0 1 0 0 1
Heavy oil A kL 48 80 37 55 21
Liquefied petroleum gas (LPG) tons 13 12 11 11 11
Liquefied natural gas (LNG) tons 8,067 7,932 7,113 7,876 8,330
Town gas thousand Nｍ3 0 0 0 0 0
Water thousand ｍ3 826 818 795 726 756



Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 29,541 28,869 28,148 29,286 29,823
Waste generated　(excluding valuable resources) tons 1,881 2,120 1,372 1,883 2,545
Waste put to landfill tons 22 21 16 19 13
Drainage (sewers) thousand ｍ3  0 0 0 0 0
Drainage (public waters) thousand ｍ3  743 740 704 735 934
NOX tons 10 12 12 12 12
SOX tons 0 0 0 0 0
BOD tons 1 1 1 1 1
COD tons － － － － －

Substances subject to the PRTR Act (kg)

Substance name Amount used Amount released Amount transferred
Atmosphere Public waters Soil Outside operating sites Sewers
N,N-Dimethylacetamide 3,597 0 0 0 3,597 0
N,N-Dimethylformamide 6,372 43 0 0 6 0
Acetonitrile 145,954 0 0 0 145,954 0
Dichloromethane (methylene chloride) 175,813 32,577 1 0 129,228 0
Tributylamine 4,128 0 0 0 0 0
Pyridine 4,484 0 0 0 1,931 0

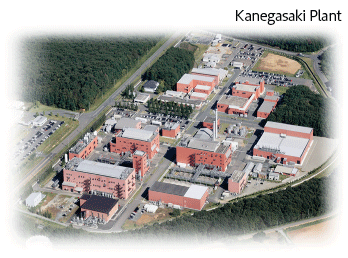

Picture of Kanegasaki Plant

ⅵ：Tokushima Plant

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh 4,521 5,065 4,646 5,444 7,306
Gasoline kL 0 0 0 0 0
Kerosene kL 0 0 0 0 0
Light oil kL 0 0 0 0 0
Heavy oil A kL 0 0 0 0 0
Liquefied petroleum gas (LPG) tons 0 0 0 0 0
Liquefied natural gas (LNG) tons 0 0 0 0 0
Town gas thousand Nｍ3 401 388 365 449 524
Water thousand ｍ3 143 112 105 143 200

Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 3,270 3,560 3,289 3,266 5,393
Waste generated　(excluding valuable resources) tons 482 692 690 1,353 1,464
Waste put to landfill tons 0.3 1.4 6.1 0.0 4.7
Drainage (sewers) thousand ｍ3 0 0 0 0 0
Drainage (public waters) thousand ｍ3  143 112 105 140 200
NOX tons － － － － －
SOX tons － － － － －
BOD tons 0 0 0 0 1
COD tons 0 0 1 0 1

Substances subject to the PRTR Act (kg)

Substance name Amount used Amount released Amount transferred
Atmosphere Public waters Soil Outside operating sites Sewers
N,N-Dimethylacetamide 10,213 0 0 0 10,213 0
N,N-Dimethylformamide 4,753 24 0 0 4,729 0
Acetonitrile 137,381 1,374 0 0 136,007 0
Dichloromethane (methylene chloride) 17,756 355 0 0 17,401 0
Toluene 2,122 21 0 0 2,101 0

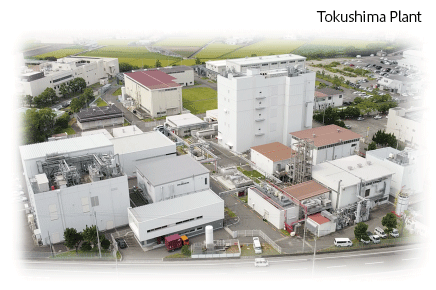

Picture of Tokushima Plant

ⅶ：UMN Pharma Inc.  Akita Plant

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh － － (1,755) 1,827 1,774
Gasoline kL － － － 0 0
Kerosene kL － － － 0 0
Light oil kL － － － 0 0
Heavy oil A kL － － － 0 0
Liquefied petroleum gas (LPG) tons － － － 0 0
Liquefied natural gas (LNG) tons － － － 0 0
Town gas thousand Nｍ3 － － (264) 291 238
Water thousand ｍ3 － － － 10 8
8



Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 － － (1,174) 1,510 1,402
Waste generated　(excluding valuable resources) tons － － － 4 5
Waste put to landfill tons － － － 0.4 0.0
Drainage (sewers) thousand ｍ3 － － － 10 8
Drainage (public waters) thousand ｍ3  － － － 0 0

Substances to be registered under the PRTR Act: None

Figures in parentheses are figures before becoming a subsidiary.

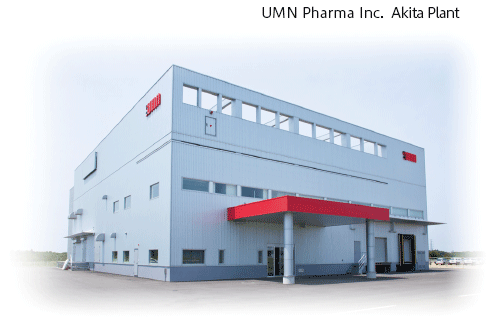

Picture of UMN Pharma Inc. Akita Plant

ⅷ：UMN Pharma Inc.  Yokohama Research Center

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh － － (178) 189 185
Gasoline kL － － － 0 0
Kerosene kL － － － 0 0
Light oil kL － － － 0 0
Heavy oil A kL － － － 0 0
Liquefied petroleum gas (LPG) tons － － (3) 0 0
Liquefied natural gas (LNG) tons － － － 0 0
Town gas thousand Nｍ3 － － － 0 0
Water thousand ｍ3 － － － 1 1
8



Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 － － (89) 83 82
Waste generated　(excluding valuable resources) tons － － － 1 1
Waste put to landfill tons － － － 0.1 0.3
Drainage (sewers) thousand ｍ3 － － － 1 1
Drainage (public waters) thousand ｍ3  － － － 0 0

Substances to be registered under the PRTR Act: None

Figures in parentheses are figures before becoming a subsidiary.

ⅸ：Itami Plant

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh － － (6,524) (6,561) 6,797
Gasoline kL － － － － 0
Kerosene kL － － － － 0
Light oil kL － － － － 0
Heavy oil A kL － － － － 0
Liquefied petroleum gas (LPG) tons － － － － 0
Liquefied natural gas (LNG) tons － － － － 0
Town gas thousand Nｍ3 － － (798) (775) 875
Water thousand ｍ3 － － － － 77

Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 － － (4,006) (3,861) 4,389
Waste generated (excluding valuable resources) tons － － － － 116
Waste put to landfill tons － － － － 30..0
Drainage (sewers) thousand ｍ3  － － － － 74
Drainage (public waters) thousand ｍ3  － － － － 0
NOX tons － － － － －
SOX tons － － － － －
BOD tons － － － － 0
COD tons － － － － 0

Substances subject to the PRTR Act (kg)

Substance name Amount used Amount released Amount transferred
Atmosphere Public waters Soil Outside operating sites Sewers
Acetonitrile 1,000 0 0 0 1,000 0

Figures in parentheses are figures before becoming a subsidiary.

ⅸ：C&O Pharmaceutical Technology (Holdings) Ltd. Nanjing Plant

Energy and resource consumption

Item Unit 2017 2018 2019 2020 2021
Electricity MWh 6,998 7,636 9,221 8,405 8,266
Steam tons 　ー 　ー 4,406 8,159 5,314
Coal tons 0 0 0 0 0
Liquefied petroleum gas (LPG) tons 462 489 220 3 3
Water thousand ｍ3 122 151 137 137 151

Impact released

Item Unit 2017 2018 2019 2020 2021
CO2 emissions tons-CO2 7,927 6,304 7,368 6,952 6,244
Waste generated tons 23 25 70 70 85
Waste put to landfill tons 2 3 6 5 7
Drainage (sewers) thousand ｍ3 31 42 46 48 44
Drainage (public waters) thousand ｍ3  0 0 0 0 0
Substances subject to the PRTR Act：Not applicable

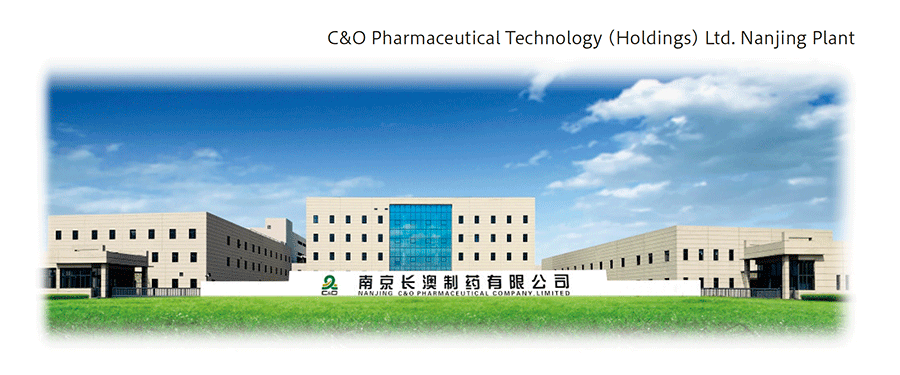

Picture of C&O Pharmaceutical Technology (Holdings) Ltd. Nanjing Plant
